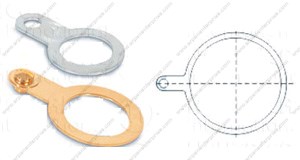

| Application: Brass | Installed between the gland entry & equipment, provides an earth bond connection. |
| Function: Standard | Produces an earth bond connection for electrical continuity |
| Material | Brass BS 2870 CZ123 lead. |
| Type | With Brass Screws & Washers, Plain Hole. |
| Plating | Nickel (NP) Chrome (CP) Zinc (ZP) Tin (TP) |
| Shape | Available in many shapes & thickness in all sizes, can be coated or plated to customers specification as mentioned. |

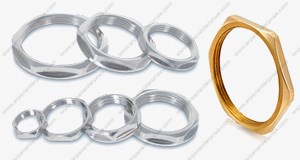

| Application: Brass | Brass Locknuts re traditional components used in fastening glands to the gland plate & as they are identical material to the gland, corrosion effects are minimal. |
| Function: Standard | With ISO metric thread. To secure only brass cable glands to a gland plate |
| EMC | With ISO metric thread with cutting edges to cut through paint layers or powder coatings, for optimum contact. |
| Material | Brass (CuZn39Pb3), Stainless Steel 304 , Stainless Steel 316L Steel, Galvanized Aluminium Alloy (BS 1476) |
| Thread | ET NPT BSP BSPT PG |
| Plating | Chrome (CP) Nickel (NP) Tin (TP) |

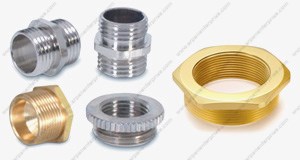

| Application | Reducer allows a PG threaded gland to be terminated in enclosures with different entry thread form (ET NPT BSP BSPT) |
| Function | Reduce the entry thread diameter of enclosures |
| Material | Brass (CuZn39Pb3), Stainless Steel 304 , Stainless Steel 316L |
| Finish | Electro Nickel Plated |
| Thread | Metric (ISO) ET NPT BSP BSPT |
| Plating | Chrome (CP) Zinc (ZP) Tin (TP) |
| Material | Brass Casting BS 2874 Aluminium Alloy & Galvanized Steel |
| Application | Stop Plug may be used to close thread entries or means of sealing & stopping unused thread entries in flame proof enclosures |
| Ingress Protection | IP66 (with Nickel Thread Seal) IP368 (3 bar-with Nitrite 'O' Rings) |
| Options Thread | ET NPT BSP BSPT & PG |
| Application | Push on shrouds which are used to minimize the risk of dirt or foreign substances gathering on the Cable Gland Body, and/or point of cable to a gland interface. |
| Function | For all types of gland applications to provide additional protection & enhances the IP rating of the gland termination. |
| Material | PVC DIP moulded (Black) |
| Operating Temp | PVC DIP moulded -200 C to +1000 C |
| Injection moulded -200 C to +800 C |

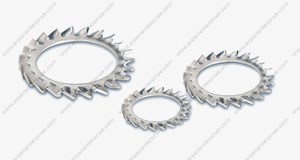

| Application | The serrated lock washer with external teeth for cable glands |
| Material | Available in Brass & Stainless Steel & Steel |
| Size | From M 20 to M 63 |
| Can be developed as per the drawing also | |

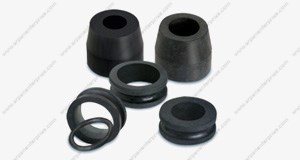

| Application | To maintain the IP rating between equipment & cable glands it may be necessary to fit an entry thread sealing washer at the gland entry interface. |
| Material | Nitrite Rubber & EPDM |
| Options Material | PVC (Black) Silicon (Orange) Polyamide or Nylon (White) Red Fibre. |
| Seals available for both external & internal use. | |

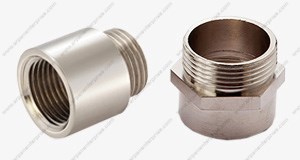

| We offer a wide range of reducer and adaptor for industrial and hazardous area application which provide effectiveness connection between cable entry devices and equipment having dis-similar thread. Adaptors are used where the thread size of the cable gland or connection device is larger than, or of an equivalent size, to the entry thread of the enclosure. |

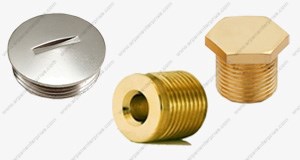

| Stop Plug are designed to sealing or close any unused entries in electrical enclosures, equipment and junction boxes, etc. Stop Plug are always used to with ring to seal properly. Stop plug are also used for maintain integrity of enclosure and IP rating of equipment. Stop Plug are generally available in Brass, Nickel Plated Brass, Mild Steel and Nylon. |
All kind of Cable Gland Accessories can be developed and supplied exactly as per customer's drawings and specifications.
